Integrations Hub — Complete Reference

Dashboard Location: Sidebar → Integrations
Navigation Sort: 50
Access: All authenticated users (navigation registration controlled separately)

Overview

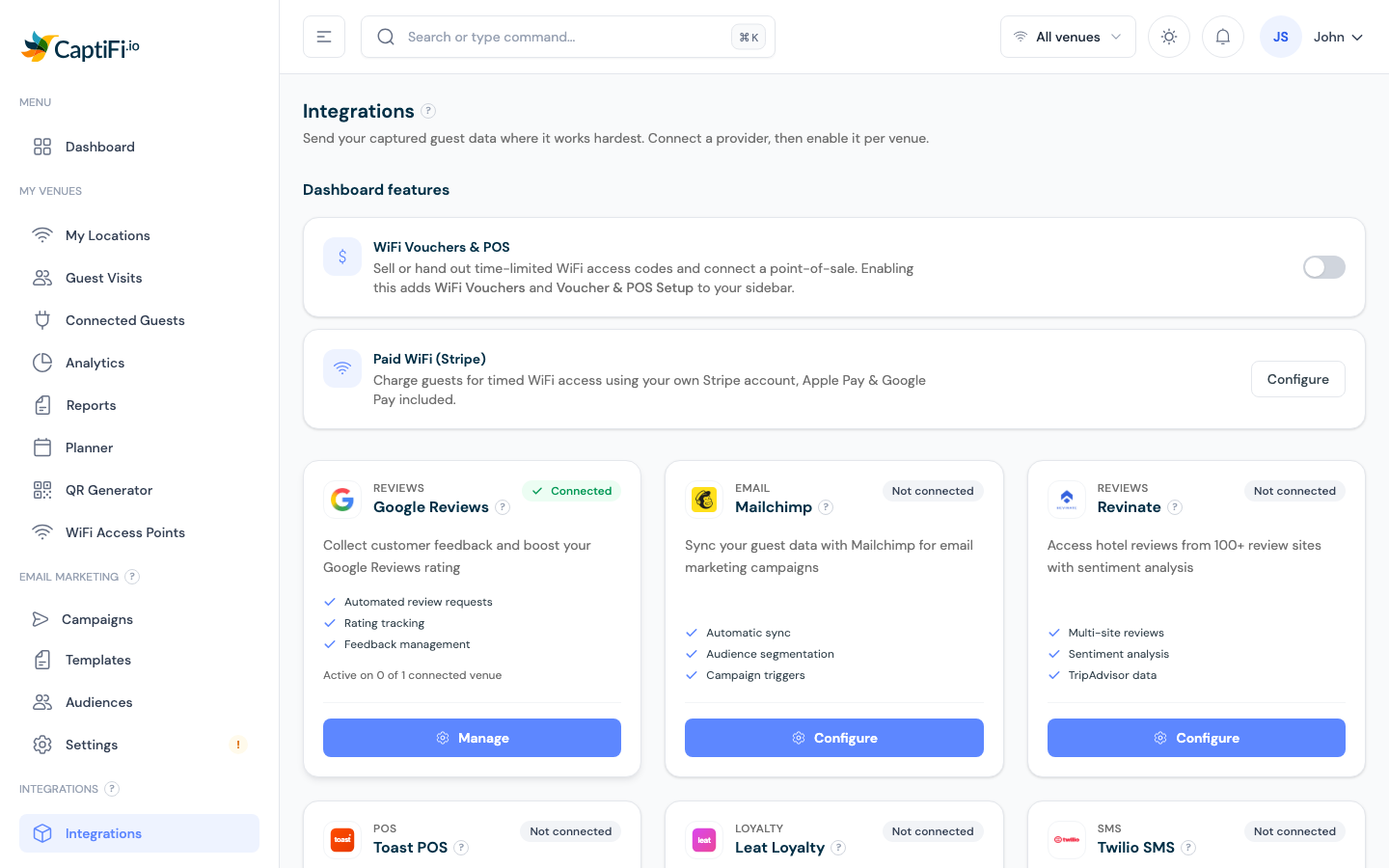

The Integrations Hub is the central page for managing all third-party service connections in CaptiFi. It displays every integration as a card in a responsive grid layout (1 column on mobile, 2 on tablet, 3 on desktop). The page header shows a gradient banner with the count of integrations available on the user's current plan.

Each integration card follows one of three visual states:

State	Appearance	Interaction
Available & Connected	Full-colour card, green "Connected" badge with pulsing dot	Clickable → opens integration config page
Available & Not Connected	Full-colour card, grey "Not Connected" badge	Clickable → opens integration config page
Locked (plan upgrade needed)	Greyed-out card (75% opacity), lock icon "Upgrade Required" badge	Not clickable; shows "Upgrade to {plan}" email link
Coming Soon	Greyed-out card (60% opacity), grayscale logo, purple clock "Coming Soon" badge	Not clickable; shows "Notify me when available" text

Card Anatomy

Every integration card displays:

Logo — Brand logo image in a white rounded container (64×64px), centered in a gradient header area (160px tall)
Name — Integration name as card title (e.g., "Google Reviews")
Description — One-line summary of what the integration does
Status Badge — Top-right corner badge showing connection state, plan requirement, or coming soon
Features List — 3 bullet points with green checkmark icons (grey when locked/coming soon)
Action Footer — Bottom section separated by a border, showing contextual action text:
- Connected: "Manage Integration →"
- Not Connected: "Connect Now →"
- Locked: "Upgrade to Busy Venue" (links to support email)
- Coming Soon: "Notify me when available" (bell icon)

Integration Count Display

The header shows: {count} integration(s) available on your plan

This count is computed by getAvailableIntegrationsCount(), which counts integrations where available = true and comingSoon is not set.

Live Integrations

1. Google Reviews

Property	Value
Slug	`google-reviews`
Brand Colour	`#4285F4`
Gradient	`from-white to-gray-100`
Logo	`images/integrations/google-logo.jpeg`
Required Plan	Busy Venue (£59/month)
Access Check	`$user->hasGoogleReviewsAccessFromPlan()` or admin
Config Page	`GoogleReviewsIntegration`
Nav Group	Integrations
Nav Sort	51

Features displayed on card:

Automated review requests
Rating tracking
Feedback management

Connection Status Logic:

Connected = user has at least one site with google_place_id NOT NULL
Label = "Connected" or "Not Connected"

Google Reviews Configuration Page

Page Title: Google Reviews Integration
Back Link: ← Back to Integrations (links to IntegrationsHub)

Site Selector:

Dropdown shown when user has multiple sites
Auto-selects first site when user has only one site
Loads site settings on selection change

Settings Fields:

Field	Type	Description
Google Reviews Enabled	Toggle (header)	Master on/off switch. Displays "Active" or "Inactive" label. Cannot be enabled if site email is not verified.
Google Business Name	Text input with autocomplete	Type-ahead search using Google Places API. Minimum 3 characters to trigger search. Selecting a result auto-fetches the Google review URL and saves settings.
Google Review URL	Auto-populated	Displayed in a green info box when found. Shows the direct Google review link.
Send Review Request After	Number + Unit select	Two-field row: delay value (number, min 1) and unit dropdown (Minutes / Hours / Days). Default: 24 hours. Auto-saves on change.
Minimum Stars for Google Review	Star rating selector (1–5)	Visual 5-star picker. Default: 4. Ratings at or above threshold direct guests to Google Reviews. Lower ratings show a private feedback form.
Feedback Email Address	Email input	Where low-rating feedback notifications are sent. Placeholder: `feedback@yourdomain.com`.
Review Emails Sent From	Read-only display	Shows the site's verified email address and name. If not verified, shows a red warning box with "Set Up Email Now" button linking to Email Setup page.
Send Test Email	Email input + button	Enter an email address and send a test review request email. Creates an EmailLog entry with `is_test = true`.

Save Action: Saves all settings to the Site model. If Google Reviews are enabled and a business name is provided without a review URL, it auto-searches Google Places to fetch place_id and review_url.

Prerequisites:

Site must have a verified custom email address (email domain verification)
Without verified email, the toggle will refuse to enable and show an error message

How It Works (displayed on page):

After a guest connects to WiFi, they receive a branded email with star ratings
High ratings (threshold+ stars) are directed to your Google Reviews page
Low ratings show a private feedback form instead
All activity is tracked in your dashboard

2. Mailchimp

Property	Value
Slug	`mailchimp`
Brand Colour	`#FFE01B`
Gradient	`from-yellow-400 to-yellow-600`
Logo	`images/integrations/mailchimp-logo.webp`
Required Plan	Busy Venue (£59/month)
Access Check	`$user->isOnBusyVenuePlanOrHigher()` or admin
Config Page	`MailchimpIntegration`
Nav Group	Integrations
Nav Sort	2
Nav Visibility	Always shown in Integrations group for customers

Features displayed on card:

Automatic sync
Audience segmentation
Campaign triggers

Connection Status Logic:

Connected = user's mailchimp_api_key is not empty
Label = "Connected" or "Not Connected"

Mailchimp Configuration Page

Page Title: Mailchimp Integration
Back Link: None (navigated from sidebar Integrations group)

Site Selector:

Dropdown shown when user has multiple sites
Auto-selects first site when user has only one site
Loads per-site Mailchimp settings on selection change

Settings Fields:

Field	Type	Description
Mailchimp Enabled	Toggle (header)	Master on/off switch in the yellow header bar. Shows "Active" or "Inactive". Auto-saves on toggle.
Mailchimp API Key	Text input (monospace)	Required. Format: `xxxxx-us19` (key + datacenter suffix). Placeholder: `e.g. abc123def456-us19`. Help text: "Find this in your Mailchimp account under Account → Extras → API Keys"
Audience ID	Text input (monospace)	Required. The Mailchimp list/audience ID. Placeholder: `e.g. a1b2c3d4e5`. Help text: "Find this in Audience → Settings → Audience name and defaults"

Test Connection Button:

Validates API key format (must contain exactly one hyphen to extract datacenter)
Calls Mailchimp API GET https://{datacenter}.api.mailchimp.com/3.0/ with Bearer token
On success: shows account name
If Audience ID also provided: validates list by calling GET .../3.0/lists/{listId}
Displays connection result with success/warning/error styling

Save Action: Saves mailchimp_enabled, mailchimp_api_key, and mailchimp_list_id to the Site model.

Per-Site Configuration: Each site has its own Mailchimp settings stored on the sites table:

mailchimp_enabled — boolean
mailchimp_api_key — string
mailchimp_list_id — string

How It Works (displayed on page):

When guests connect to your WiFi and provide their email, they're automatically added to your Mailchimp audience
Guest names and email addresses sync seamlessly
Guests can opt-out at any time using Mailchimp's unsubscribe links
Perfect for building your marketing list and staying in touch with customers

Setup Steps:

Navigate to Integrations → Mailchimp
Select your site/location
Enter your Mailchimp API key (found in Account → Extras → API Keys)
Enter your Audience/List ID (found in Audience → Settings → Audience name and defaults)
Click "Test Connection" to verify credentials
Toggle the integration to "Active"
Click "Save Settings"

New guests who connect to WiFi and provide an email will be automatically synced to your Mailchimp audience, respecting their marketing opt-in status.

3. Revinate

Property	Value
Slug	`revinate`
Brand Colour	`#00B4D8`
Gradient	`from-cyan-500 to-teal-600`
Logo	`images/integrations/revinate-logo.png`
Required Plan	Busy Venue (£59/month)
Access Check	`$user->isOnBusyVenuePlanOrHigher()` or admin
Config Page	`RevinateIntegration`
Nav Group	Integrations
Nav Sort	52
Nav Label	Revinate Export
Special Badge	`isNew: true` (shown on IntegrationsHub card)

Features displayed on card:

Multi-site reviews
Sentiment analysis
TripAdvisor data

Connection Status Logic:

Connected = user has at least one site with revinate_access_token NOT NULL AND revinate_enabled = true
Label (connected) = "{count} Site(s) Connected"
Label (not connected) = "Not Connected"

For admins, the count includes ALL sites across all users. For customers, only their own sites are counted.

"New" Badge: The integration is flagged with isNew: true. The hub page has a LAUNCH_DATE constant (2026-01-28) and a NEW_BADGE_DAYS constant (7 days), used by isFeatureNew() to determine if the "New" badge should be prominently displayed.

Revinate Configuration Page

Page Title: Revinate Export
Back Link: ← Back to Integrations (links to IntegrationsHub)

Stats Overview (top of page):

Stat	Description
Connected Sites	Count of sites with `revinate_access_token` set
Active Exports	Count of sites with token set AND `revinate_enabled = true`

Add/Configure Site Connection Section:

Field	Type	Description
Select Site	Dropdown	Lists all user's sites (admins see all sites with owner name). Triggers `loadSiteSettings()` on change.
Access Token	Text input (monospace)	The Revinate API access token. Placeholder: `9617d668-8a9b-466f-aa0b-d5f046299611`. Help text: "Your Revinate token can be found in the Revinate admin portal under API settings."
Export opted-in guests only	Toggle	Default: ON. When enabled, only guests who opted into marketing are exported.
Enable automatic export	Toggle	Default: OFF. When enabled, new guests are exported to Revinate automatically.

Action Buttons:

Save Settings — Saves revinate_access_token, revinate_export_opted_in_only, and revinate_enabled to the Site model. Reloads connected sites list and resets form.

Connected Sites Table:

Displays all sites that have a Revinate access token configured. Each entry shows:

Column	Description
Site Name	With Active/Paused status badge
Owner	(Admin view only) User who owns the site
Token Preview	First 8 chars + "..." + last 4 chars of the access token
Last Export	Relative time (e.g., "2 hours ago") from `revinate_last_export_at`, or "Never"
Guest Filter	"Opted-in guests only" or "All guests"

Per-Site Actions:

Button	Action
Edit	Opens inline edit panel with access token, opted-in toggle, and auto-export toggle. Save/Cancel buttons.
Pause / Enable	Toggles `revinate_enabled` on the site.
Remove	Disconnects site from Revinate (clears token, disables export, clears last export timestamp). Requires confirmation dialog.

Per-Site Database Fields:

revinate_access_token — string (nullable)
revinate_enabled — boolean
revinate_export_opted_in_only — boolean (default: true)
revinate_last_export_at — timestamp (nullable)

How It Works: When enabled, CaptiFi automatically exports new WiFi guest data to your Revinate account. This includes guest names, email addresses, and marketing preferences. Use the "Export Now" button to manually sync all existing guests.

Coming Soon Integrations

These integrations are displayed on the Integrations Hub with reduced opacity (60%), greyscale logos, a purple "Coming Soon" clock badge, and a "Notify me when available" footer. They are not clickable.

4. Facebook

Property	Value
Slug	`facebook`
Brand Colour	`#1877F2`
Gradient	`from-blue-600 to-blue-800`
Logo	`images/integrations/facebook-logo.png`
Description	Connect with customers through Facebook and Instagram marketing

Planned Features:

Social WiFi login
Check-in prompts
Audience targeting

5. Twilio

Property	Value
Slug	`twilio`
Brand Colour	`#F22F46`
Gradient	`from-red-500 to-red-700`
Logo	`images/integrations/twilio-logo.png`
Description	Send SMS notifications and two-way messaging to guests

Planned Features:

SMS campaigns
Two-way messaging
Delivery tracking

6. Airship

Property	Value
Slug	`airship`
Brand Colour	`#00C7B7`
Gradient	`from-teal-500 to-teal-700`
Logo	`images/integrations/airship-logo.png`
Description	Push notifications and mobile engagement for your guests

Planned Features:

Push notifications
Mobile engagement
In-app messaging

7. Gmail / Google Workspace

Property	Value
Slug	`gmail`
Brand Colour	`#EA4335`
Gradient	`from-red-400 to-orange-500`
Logo	`images/integrations/gmail-logo.png`
Description	Send emails through your Google Workspace account

Planned Features:

Google Workspace
Domain sending
Email tracking

8. ChatGPT / AI Assistant

Property	Value
Slug	`chatgpt`
Brand Colour	`#10A37F`
Gradient	`from-emerald-500 to-green-600`
Logo	`images/integrations/openai-logo.png`
Description	AI-powered guest support and content generation

Planned Features:

AI chatbot
Content generation
Smart responses

9. Zapier

Property	Value
Slug	`zapier`
Brand Colour	`#FF4A00`
Gradient	`from-orange-500 to-orange-700`
Logo	`images/integrations/zapier-logo.png`
Description	Connect CaptiFi to 5,000+ apps with automated workflows

Planned Features:

5,000+ app integrations
Automated workflows
Custom triggers

10. Slack

Property	Value
Slug	`slack`
Brand Colour	`#4A154B`
Gradient	`from-purple-600 to-purple-800`
Logo	`images/integrations/slack-logo.png`
Description	Get real-time notifications and updates in Slack

Planned Features:

Real-time alerts
Guest notifications
Team updates

11. HubSpot

Property	Value
Slug	`hubspot`
Brand Colour	`#FF7A59`
Gradient	`from-orange-400 to-red-500`
Logo	`images/integrations/hubspot-logo.png`
Description	Sync guest data to HubSpot CRM for sales and marketing

Planned Features:

CRM sync
Contact management
Marketing automation

Access Control Summary

Integration	Required Plan	Access Method
Google Reviews	Busy Venue (£59+)	`hasGoogleReviewsAccessFromPlan()`
Mailchimp	Busy Venue (£59+)	`isOnBusyVenuePlanOrHigher()`
Revinate	Busy Venue (£59+)	`isOnBusyVenuePlanOrHigher()`
All Coming Soon	N/A	Not accessible (display only)

Admins bypass all plan restrictions and can access/configure all integrations.

Users on lower plans see locked integration cards with greyed-out logos, a lock badge reading "Upgrade Required", and a footer link to email support@captifi.io with a pre-filled upgrade request subject line.

Help Section

The bottom of the Integrations Hub page displays a blue info box:

Need help setting up integrations?
Our support team can help you connect your services. Contact us at support@captifi.io or check our documentation for step-by-step guides.

File	Purpose

Integrations Hub — Complete Reference ​

Overview ​

Card Anatomy ​

Integration Count Display ​

Live Integrations ​

1. Google Reviews ​

Google Reviews Configuration Page ​

2. Mailchimp ​

Mailchimp Configuration Page ​

3. Revinate ​

Revinate Configuration Page ​

Coming Soon Integrations ​

4. Facebook ​

5. Twilio ​

6. Airship ​

7. Gmail / Google Workspace ​

8. ChatGPT / AI Assistant ​

9. Zapier ​

10. Slack ​

11. HubSpot ​

Access Control Summary ​

Help Section ​

Related Files ​

Integrations Hub — Complete Reference

Overview

Card Anatomy

Integration Count Display

Live Integrations

1. Google Reviews

Google Reviews Configuration Page

2. Mailchimp

Mailchimp Configuration Page

3. Revinate

Revinate Configuration Page

Coming Soon Integrations

4. Facebook

5. Twilio

6. Airship

7. Gmail / Google Workspace

8. ChatGPT / AI Assistant

9. Zapier

10. Slack

11. HubSpot

Access Control Summary

Help Section

Related Files
